Textile Dyeing Process Stenter Spray Humidifier Machine

  • Textile Dyeing Process Stenter Spray Humidifier Machine
  • Textile Dyeing Process Stenter Spray Humidifier Machine
  • Textile Dyeing Process Stenter Spray Humidifier Machine
  • Textile Dyeing Process Stenter Spray Humidifier Machine

Textile Dyeing Process Stenter Spray Humidifier Machine

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW,FCA
    Min. Order: 1 Set/Sets
    Delivery Time: 25 Days
    Productivity: 100set/Month
    Place of Origin: China
    Supply Ability: 100set/Month

Basic Info

Model No.: LK-HA02

Product Description

TEXTILE DYEING FINISHING SPRAY Humidifier Machine FOR STENTER MACHINE



USAGE:

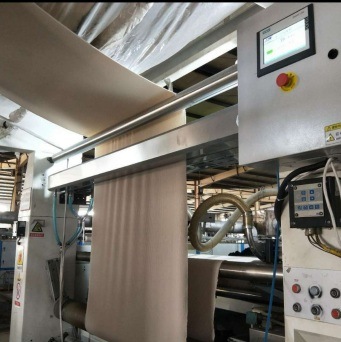

It's installed in inlet or outlet of stenter machine, outlet of compactor machine to humidify fabric or feed chemical to fabric to get target weight or hand feel in final process.

FEATURES:

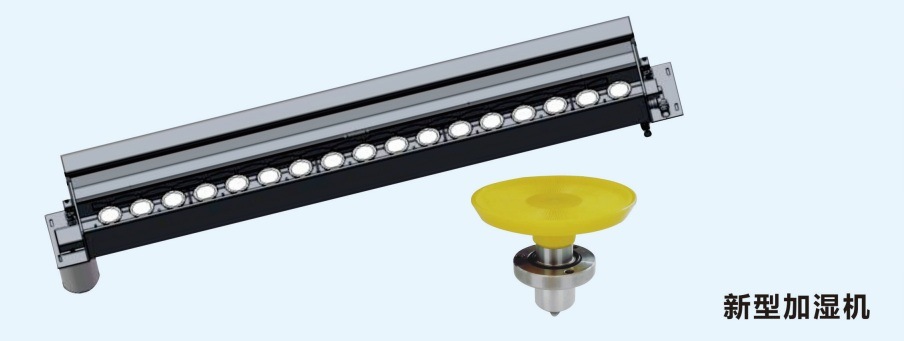

1.The unique design of the new spray disc solves the problems of the traditional spray disc, such as easy blockage, uneven spray, large water particles, bearing damage easily and high cost.
2. The unique pattern design of the sprinkler makes the spraying more uniform, the water particles smaller, the spray never blocked, the sprayer no need to replaced and the longer service life.

3. The main material of the new type spray disc is made of imported ABS material, which has high temperature resistance of 300 degree ( better guarantee of service life).
4.The new sprinkler has a higher speed (6000 RPM) than the traditional spray disc. The new sprinkler disc guarantees that the water emittedis absorbed more efficiently by the cloth surface and saves more water.

5. Sprinkler belts imported from Italy, which is more durable.
Spray Humidifier
Spray Humidifier

TECHNICAL SPEFIFICATIONS:
Process name Single-side humidification parameter
Double-side humidification parameter
Work width 2000mm, 2200mm, 2500mm, 2600mm 2000mm, 2200mm, 2500mm, 2600mm
Fabric width 1950mm, 2200mm, 2500mm, 2600mm 1850mm, 2100mm, 2300mm, 2400mm
Power parameter Rated voltage:380V 50HZ Rated voltage:380V 50HZ
Rated power: <=1.2kw Rated power: <=2.4kw
Air pressure:3-5bar Air pressure:3-5bar
Frequency regulation range of water pump 10-50HZ 10-50HZ


STYLE: LK-HA02
